Assignment 3

In this assignment, you'll extend the work from Assignment 1 and 2 to speed up the transformer model for more efficient training and inference. You will focus on optimizing the Softmax and LayerNorm batch reduction operations by writing custom CUDA code.

The CUDA optimizations are based on methods from the LightSeq and LightSeq2 papers. We strongly encourage you to refer to the papers and the relevant lecture slides while working on this assignment. Before starting to write the CUDA code, make sure you have read through the write-up and understood what each kernel is doing.

Setting up the Code

The starting codebase is provided in the following repository:
https://github.com/llmsystem/llmsys_s25_hw3

You will need to merge it with your implementation from the previous assignments. Here are our suggested steps:

Step 1: Install Requirements

Install the required dependencies and miniTorch by running the following commands:

pip install -r requirements.extra.txt
pip install -r requirements.txt
pip install -e .

Step 2: Copy and Compile CUDA Kernels

Copy the CUDA kernel file combine.cu from Assignment 2 and compile it:

# From Assignment 2 to the current directory
cp <path_to_assignment_2>/combine.cu src/combine.cu

# Compile the CUDA kernels
bash compile_cuda.sh

Step 3: Copy Files from Assignment 1 and Assignment 2

Copy autodiff.py from Assignment 1 to the specified location:

cp <path_to_assignment_1>/autodiff.py minitorch/autodiff.py

Hints for Copying and Pasting: When copying the backpropagate() function, make sure to double-check the implementation you wrote for Assignment 1. It's a good idea to set a default value of 0.0 before accumulating the gradients in backpropagate(). We recommend initializing the derivatives map for each unique_id to 0.0 outside the for loop.

Step 4: Incrementally Add Functions

Keep copying several other functions from Assignment 2 as needed to complete this assignment.

Copy minitorch/nn.py from Assignment 2 to the specified location:

cp <path_to_assignment_2>/nn.py minitorch/nn.py

Copy minitorch/modules_basic.py from Assignment 2 to the specified location:

cp <path_to_assignment_2>/modules_basic.py minitorch/modules_basic.py

Copy minitorch/modules_transfomer.py from Assignment 2 to the specified location:

cp <path_to_assignment_2>/modules_transfomer.py minitorch/modules_transfomer.py

Copy run_machine_translation.py from Assignment 2 to the specified location:

cp <path_to_assignment_2>/run_machine_translation.py run_machine_translation.py

Problem 1.1: Softmax Forward (20 points)

In this part, you will implement a fused kernel of softmax in the attention mechanism.

The softmax function for a vector \( \mathbf{x} \) is defined as:

\[ \text{softmax}(\mathbf{x})_i = \frac{e^{x_i}}{\sum_{j} e^{x_j}} \]

where \( x_i \) is the \( i \)-th element of \( \mathbf{x} \).

The kernel also incorporates attention mechanisms, particularly in its handling of attention masks. Attention masks are used to control the model's focus on specific parts of the input.

Instructions

  1. Implement the CUDA Kernel
    Write the CUDA kernel for softmax in src/softmax_kernel.cu:

      template <typename T, int block_dim, int ele_per_thread>
  __global__ void ker_attn_softmax(T *inp, ...) {
      ...
  }

  template <typename T, int block_dim, int ele_per_thread>
  __global__ void ker_attn_softmax_lt32(T *inp, ...) {
      ...
  }

    • The ker_attn_softmax_lt32 kernel is already implemented for sequences shorter than 32 and does not require block-level parallelism.
    • Review the provided implementation of ker_attn_softmax_lt32 and use it as a reference to implement ker_attn_softmax.

  2. Compile the CUDA File
    Compile the CUDA file using the following command:

    nvcc -o minitorch/cuda_kernels/softmax_kernel.so --shared src/softmax_kernel.cu -Xcompiler -fPIC

  3. Bind the Kernel to miniTorch
    In minitorch/cuda_kernel_ops.py, bind the kernel by passing the CUDA stream:

    class CudaKernelOps(TensorOps):
    @staticmethod
    def attn_softmax_fw(inp: Tensor, mask: Tensor):
        ...

    In minitorch/tensor_functions.py, define the softmax forward function:

    class Attn_Softmax(Function):
    @staticmethod
    def forward(ctx: Context, inp: Tensor, mask: Tensor) -> Tensor:
        ...

  4. Test the Implementation
    Run the provided test script and ensure your implementation achieves an average speedup of approximately 6.5×:

    python kernel_tests/test_softmax_fw.py

Understanding Softmax Forward Kernels

The ker_attn_softmax_lt32 and ker_attn_softmax kernels are optimized for different input sizes:

  • ker_attn_softmax_lt32:

    • Utilizes warp-level primitives for reduction.
    • Suitable for smaller input sizes (<32 sequence length).
    • Efficient parallel reduction without block-wide synchronization.

  • ker_attn_softmax:

    • Employs block-level reduction techniques.
    • Suitable for larger input sizes.
    • Includes two phases of reduction (max and sum) followed by a normalization step with synchronization.

Algorithmic Steps

The softmax computation in both kernels consists of three main steps:

  1. Compute Max

    • Identify the maximum value for normalization to avoid numerical overflow during exponentiation.

  2. Compute Exponentials and Sum

    • Calculate the exponentials of normalized values and their sum for final normalization.

  3. Compute Final Result

    • Normalize the exponentials by dividing by the sum to obtain softmax probabilities.
    • Use CUB library's BlockStore to minimize memory transactions.

Computing the Maximum Value for Normalization

Both kernels implement the maximum value computation in the same way. Study the implementation in ker_attn_softmax_lt32.

Steps to Compute the Maximum Value:

  1. Thread Local Max:
    Each thread computes a local maximum:

    • Intermediate values and attention mask adjustments are stored in val[token_per_reduce][ele_per_thread].
    • The thread-local maximum is recorded in l_max[token_per_reduce], initialized to REDUCE_FLOAT_INF_NEG.

  2. Future Token Masking:
    If future tokens are masked, their values are excluded from the maximum computation by setting them to REDUCE_FLOAT_INF_NEG.

  3. Attention Mask Adjustment:
    Adjust the input value by adding the corresponding attention mask value.

  4. Iterative Updates:
    Update the thread-local maximum using fmaxf.

Block-Level Reduction for Global Max:

  • ker_attn_softmax_lt32:

    • Uses a warp-level reduction with a custom warpReduce function.

  • ker_attn_softmax:

    • Uses block-wide reduction with the CUB library's BlockLoad and shared memory for synchronization.

Problem 1.2: Softmax Backward (20)

The gradient of the softmax function for a vector \( \mathbf{x} \) is given by:

\[ \frac{\partial \text{softmax}(\mathbf{x})_i}{\partial x_j} = \text{softmax}(\mathbf{x})_i (\delta_{ij} - \text{softmax}(\mathbf{x})_j) \]

where \( \delta_{ij} \) is the Kronecker delta.

  1. Implement launch_attn_softmax_bw in src/softmax_kernel.cu:

    void launch_attn_softmax_bw(float *out_grad,
                                const float *soft_inp, int rows,
                                int softmax_len,
                                cudaStream_t stream)

    In lectures, we described the use of templates for tuning kernel parameters. When implementing launch_attn_softmax_bw, you should compute the ITERATIONS parameter of ker_attn_softmax_bw depending on different max sequence lengths in {32, 64, 128, 256, 384, 512, 768, 1024, 2048}.

    Hint: Refer to the way templates are used in launch_attn_softmax.

    template <typename T, int ITERATIONS>
__global__ void ker_attn_softmax_bw(T *grad, ...) {
    ...
}

  2. Compile the CUDA file:

    >>> nvcc -o minitorch/cuda_kernels/softmax_kernel.so --shared src/softmax_kernel.cu -Xcompiler -fPIC

  3. Bind the kernel with miniTorch in minitorch/cuda_kernel_ops.py.

    Hint: You should pass the CUDA stream to the function, define it with:

    stream_1 = torch.cuda.current_stream().cuda_stream

    class CudaKernelOps(TensorOps):
    @staticmethod
    def attn_softmax_bw(out_grad: Tensor, soft_inp: Tensor):
        ...

    And in minitorch/tensor_functions.py:

    class Attn_Softmax(Function):
    @staticmethod
    def backward(ctx: Context, out_grad: Tensor) -> Tensor:
        ...

  4. Pass the test and notice an average speedup around 0.5 with our given default max lengths {32, 64, 128, 256, 384, 512, 768, 1024, 2048}. You can try other setups of max length and achieve a higher speedup, but it will not be graded.

    >>> python kernel_tests/test_softmax_bw.py

Understanding Softmax Backward Kernel

The ker_attn_softmax_bw function is a CUDA kernel for computing the backward pass of the softmax function in self-attention mechanisms. Here are the steps:

Initialization

  • The function calculates the backward pass for each element in the gradient and the output of the softmax forward pass.
  • The grid and block dimensions are configured based on the batch size, number of heads, and sequence length.

Gradient Calculation

  • The function iterates over the softmax length, with each thread handling a portion of the data.
  • It loads the gradient and input (output of softmax forward) into registers.
  • A local sum is computed for each thread, which is a key part of the gradient calculation for softmax.

Gradient Computation

  • The sum is shared across the warp using warp shuffle operations.
  • The final gradient for each element is computed by modifying the forward pass output with the computed sum.

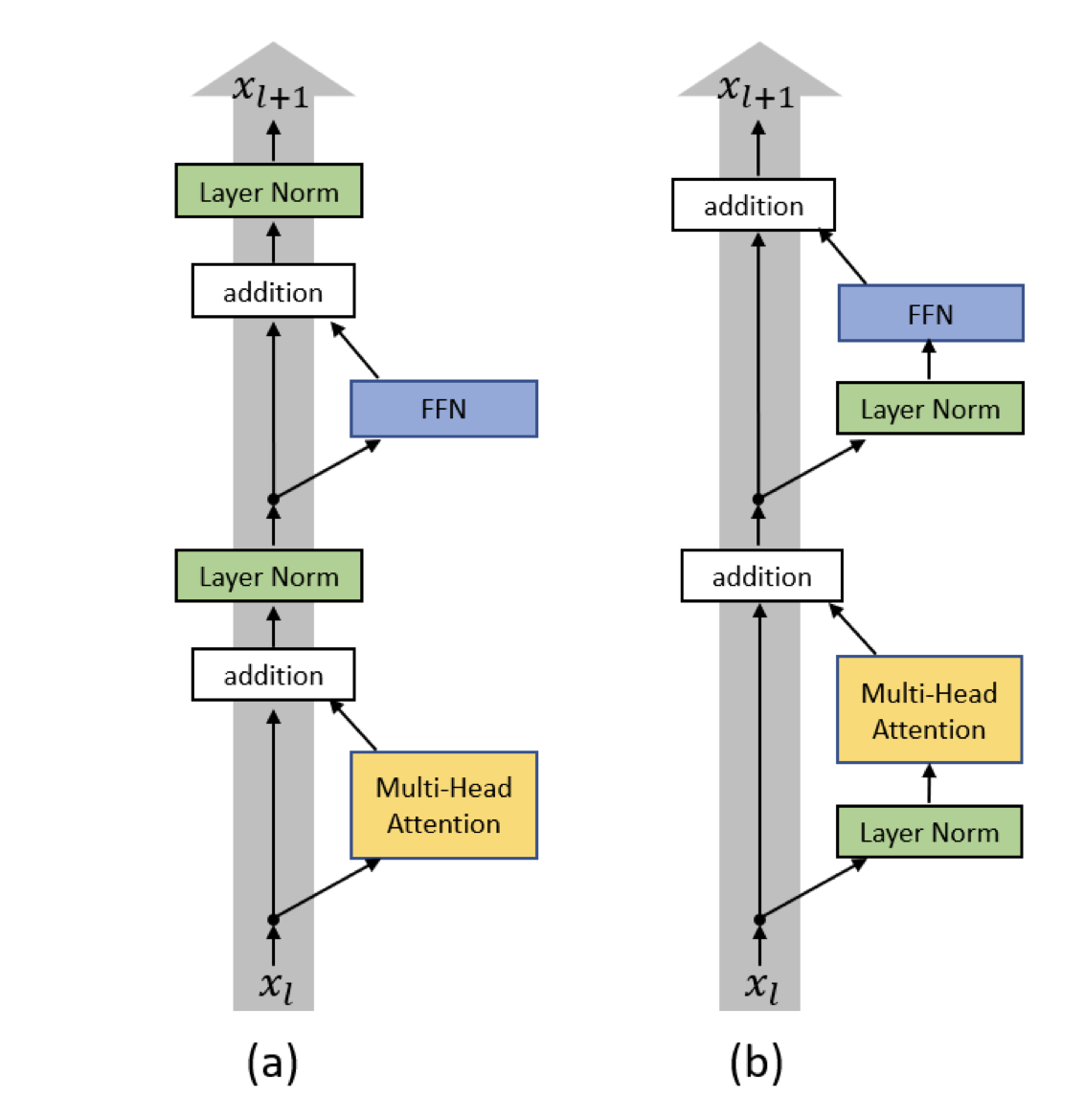

Problem 2.1: LayerNorm Forward (20)

LayerNorm normalizes the input \( \boldsymbol{x} \) by:

\[ \boldsymbol{y}_{i} = \boldsymbol{\gamma}_{i} \cdot \frac{\boldsymbol{x}_{i} - \mu{(\boldsymbol{x})}}{\sigma{(\boldsymbol{x})}} + \boldsymbol{\beta}_{i}, \]

where \( \mu{(\boldsymbol{x})} \) and \( \sigma{(\boldsymbol{x})} \) are the mean and the standard deviation of \( \boldsymbol{x} \) respectively, and \( \boldsymbol{\gamma} \) and \( \boldsymbol{\beta} \) are the learnable affine transform parameters in LayerNorm.

Noting that the equation above requires two reduction operations (mean and standard deviation), these cannot be computed in parallel. Speedup can be achieved by computing the standard deviation as:

\[ \sigma{(\boldsymbol{x})} = \sqrt{\mu{(\boldsymbol{x}^{2})} - \mu{(\boldsymbol{x})}^{2} + \epsilon}, \]

where \( \epsilon = 1 \times 10^{-8} \) is a small value added to the variance for numerical stability. This approach allows concurrent computation of the means of \( \boldsymbol{x} \) and \( \boldsymbol{x}^{2} \).

Steps

  1. Implement the CUDA kernel of LayerNorm forward in src/layernorm_kernel.cu:

    template <typename T>
__global__ void ker_layer_norm(T *ln_res, ...) {
    ...
}

  2. Compile the CUDA file:

    >>> nvcc -o minitorch/cuda_kernels/layernorm_kernel.so --shared src/layernorm_kernel.cu -Xcompiler -fPIC

  3. Bind the kernel with miniTorch in minitorch/cuda_kernel_ops.py:

    Hint: You should pass the CUDA stream to the function, defining it as:

    stream_1 = torch.cuda.current_stream().cuda_stream

    class CudaKernelOps(TensorOps):
    @staticmethod
    def layernorm_fw(inp: Tensor, gamma: Tensor, beta: Tensor):
        ...

    And in minitorch/tensor_functions.py:

    class LayerNorm(Function):
    @staticmethod
    def forward(ctx: Context, ...) -> Tensor:
        ...
        return out

  4. Pass the test and notice an average speedup around \( 15.8\times \):

    >>> python kernel_tests/test_layernorm_fw.py

Understanding LayerNorm Forward Kernels

In this kernel, we use float4 to speed up computations. This approach enhances performance when handling large datasets by processing multiple data elements simultaneously, leveraging the SIMD (Single Instruction, Multiple Data) parallelism inherent in GPUs.

When using CUDA programming and float4, reinterpret_cast is required to convert between types. For example, in src/layernorm_kernel.cu, the sum of \boldsymbol{x} in step 1 is computed as follows:

  • reinterpret_cast is used to convert a float array inp to a float4 vector inp_f4.
  • Each thread within a block calculates l_sum for its assigned elements in inp_f4.

Algorithmic Steps

  1. Compute the sums of \boldsymbol{x} and \boldsymbol{x}^{2} :

    • Use reinterpret_cast by casting to float4 for speedup.

  2. Perform reduction:

    • Compute the reduce sum with blockReduce and add epsilon (LN_EPSILON).

  3. Compute the LayerNorm result:

    • Use reinterpret_cast to cast to float4 for speedup.

Problem 2.2: LayerNorm Backward (20)

Let \(\hat{\boldsymbol{x}}_{i} = \frac{\boldsymbol{x}_{i} - \mu{(\boldsymbol{x})}}{\sigma{(\boldsymbol{x})}}\), then the final gradient of \(\boldsymbol{x}_{i}\) can be re-written as:

\(\nabla{\boldsymbol{x}_{i}} = \frac{\nabla{\boldsymbol{y}_{i}}\boldsymbol{\gamma}_{i}}{\sigma{(\boldsymbol{x})}} - \frac{1}{m \sigma{(\boldsymbol{x})}} \left( \sum_{j}{\nabla{\boldsymbol{y}_{j}}\boldsymbol{\gamma}_{j}} + \hat{\boldsymbol{x}}_{i} \sum_{j}{\nabla{\boldsymbol{y}_{j}}\boldsymbol{\gamma}_{j}\hat{\boldsymbol{x}}_{j}} \right)\),

where \(m\) is the dimension of \(\boldsymbol{x}\), and \(\nabla{\boldsymbol{x}}\) and \(\nabla{\boldsymbol{y}}\) are the input and output gradients.
The speedup can be achieved by concurrently executing two batch reduction operations in the parentheses above.

The gradients of \(\boldsymbol{\gamma}_{i}\) and \(\boldsymbol{\beta}_{i}\) are:

\(\nabla{\boldsymbol{\gamma}_{i}} = \sum_{j}{\nabla{\boldsymbol{y}_{j}}\hat{\boldsymbol{x}}_{j}}, \quad \nabla{\boldsymbol{\beta}_{i}} = \sum_{j}{\nabla{\boldsymbol{y}_{j}}}\).

Steps to Implement

  1. Implement the CUDA kernel of LayerNorm backward in src/layernorm_kernel.cu:

    template <typename T>
__global__ void ker_ln_bw_dinp(T *inp_grad, ...) {
    ...
}

template <typename T>
__global__ void ker_ln_bw_dgamma_dbetta(T *gamma_grad, ...) {
    ...
}

  2. Compile the CUDA file:

    >>> nvcc -o minitorch/cuda_kernels/layernorm_kernel.so --shared src/layernorm_kernel.cu -Xcompiler -fPIC

  3. Bind the kernel with miniTorch in minitorch/cuda_kernel_ops.py: Hint: Pass the CUDA stream to the function, defining it with:

    stream_1 = torch.cuda.current_stream().cuda_stream
    Example implementation:
    class CudaKernelOps(TensorOps):
    @staticmethod
    def layernorm_bw(out_grad: Tensor, ...):
        ...
    Then integrate it in minitorch/tensor_functions.py:
    class LayerNorm(Function):
    @staticmethod
    def backward(ctx: Context, out_grad: Tensor) -> Tensor:
        ...

  4. Pass the test and notice an average speedup of approximately 3.7×:

    >>> python kernel_tests/test_layernorm_bw.py

Understanding LayerNorm Backward Kernels

Input Gradients

Initialization:
Each thread is responsible for a specific element in the inp_grad array.

Algorithmic Steps:

  1. Compute \(\nabla{\boldsymbol{y}_{i}}\boldsymbol{\gamma}_{i}\) with reinterpret_cast by casting to float4 for speedup.
  2. Compute \(\hat{\boldsymbol{x}}_{i}\) with reinterpret_cast by casting to float4 for speedup.
  3. Compute reduce sum for \(\nabla{\boldsymbol{y}_{i}}\boldsymbol{\gamma}_{i}\) and \(\nabla{\boldsymbol{y}_{i}}\boldsymbol{\gamma}_{i}\hat{\boldsymbol{x}}_{i}\) with blockReduce.
  4. Compute final gradient.

Gamma and Beta Gradients

Initialization:
Shared memory arrays betta_buffer and gamma_buffer are declared to store intermediate results within the thread block.
CUDA thread blocks cg::thread_block and thread block tiles cg::thread_block_tile are used to organize threads.

Loop Over Rows:
Threads in the y-dimension loop over rows, calculating partial gradients for each row based on the given inputs (out_grad, inp, means, vars).

Shared Memory Storage:
The computed partial gradient values are stored in shared memory arrays betta_buffer and gamma_buffer in a tiled manner.

Reduction within Thread Block:
Threads cooperate to perform a reduction operation on betta_buffer and gamma_buffer using g.shfl_down (shuffle down) operations along threadIdx.y.
This approach avoids bank conflicts and improves warp-level parallelism.

Final Result Assignment:
The final reduction result is assigned to the appropriate positions in the global output arrays (gamma_grad and betta_grad).

Algorithmic Steps:

  1. Compute the partial gradients by looping across inp rows.
  2. Store the partial gradients in the shared memory arrays.
  3. Compute the reduce sum of the shared memory arrays with g.shfl_down.
  4. Assign the final result to the correct position in the global output.

More hints about g.shfl_down: Read

https://developer.nvidia.com/blog/cooperative-groups/#:~:text=Using%20thread_block_tile%3A%3Ashfl_down()%20to%20simplify%20our%20warp%2Dlevel%20reduction%20does%20benefit%20our%20code%3A%20it%20simplifies%20it%20and%20eliminates%20the%20need%20for%20shared%20memory.
The highlighted line gives you a conceptual understanding of what the g.shfl_down is doing. Usually, the threads inside a block need to load everything to shared memory and work together to reduce the result (like what you have implemented in the hw1 for reduce function). Now g.shfl_down helps you do so without consuming any shared memory. g.shfl_down makes it more efficient.

Problem 3: Adopt Fused Kernels in Transformer (20)

The improved CUDA kernels are now bound with the miniTorch library.

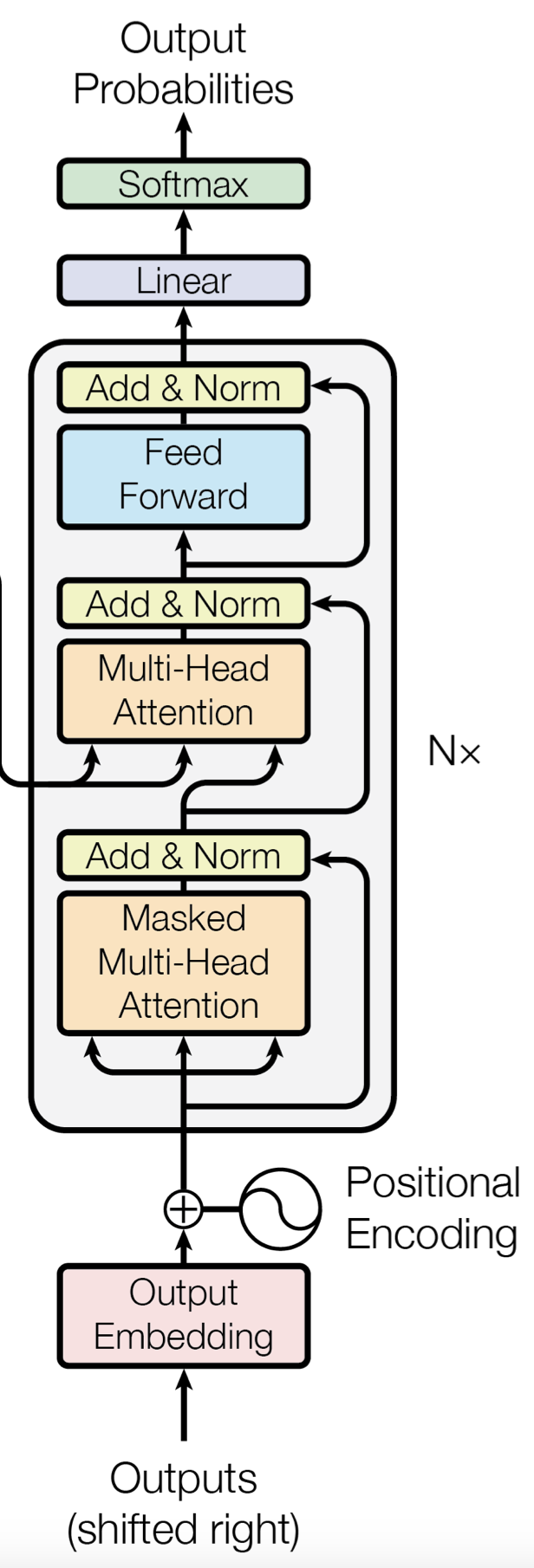

Integrate the improved CUDA kernels into the transformer from Assignment 2.

  1. Replace the softmax and layernorm operations in MultiHeadAttention, TransformerLayer, and DecoderLM with your accelerated kernels in minitorch/modules_transfomer.py.

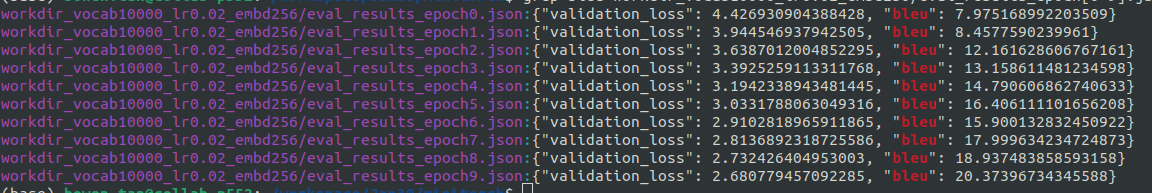

  2. Train the transformer for one epoch, with and without using the fused kernel, and record the running time:
    >>> python project/run_machine_translation.py --use-fused-kernel False
>>> python project/run_machine_translation.py --use-fused-kernel True
  3. According to Amdahl's law, the improvement should not be significant since only softmax and layernorm are improved. However, you should still notice an average speedup of approximately 1.1×.

Submission

Please submit the entire llmsys_s24_hw3 folder as a zip file on Canvas.
